Manageable Industrial PoE Switch for Power /
Data Transfer simultaneously |
 |
The PLANET ISW-504PS, a Web management Industrial PoE Switch, is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and performs intelligent PoE control, power usage monitoring and smart Layer 2 switching management in industrial harsh environments.
IEEE 802.3af Power over Ethernet Industrial Switch
The ISW-504PS provides 5 10/100Mbps copper ports with 4-Port IEEE 802.3af Power over Ethernet inject interfaces delivered in an IP-30 rugged strong case. Furthermore, there is only 24V DC input in some industrial environments, the ISW-504PS supports 24V DC or 48V DC dual voltages input and up to 15.4 Watts power output per port for any remote IEEE 802.3af powered device (PD). The ISW-504PS is an ideal solution to deploy more wide range of industrial surveillance system and wireless service in climatically demanding wide temperature range (-10 to 60 Degree C) environments.
Excellent Software of Web Smart Features
For efficient management, the ISW-504PS is built with Web-Based management design to offer a user-friendly configuration interface. It makes the ISW-504PS easy to survey and control the PoE power provision to the devices via the Web interface. |
|
|
|
| |
 |
| |
 |
4-Port IEEE 802.3af Power over Ethernet Injector / End-Span PSE |
|
15.4 Watts full power inject by each PoE port |
|
Web interface for remote PoE power management and monitor |
|
24V or 48V DC Redundant Power Input |
|
-10 to 60 Degree C Wide Operating Temperature |
|
IP-30 aluminum metal case / DIN Rail and Wall Mount Design |
|
802.1Q VLAN / QoS / Storm Control / SNMP Trap |
|
| |
 |
| |

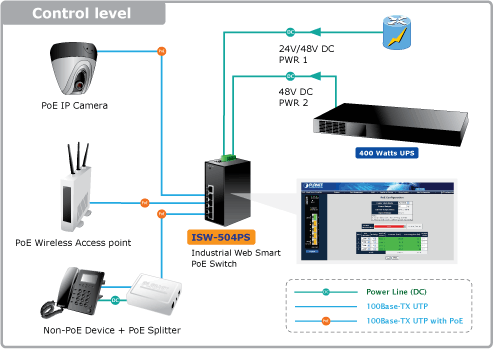

Industrial area Department / Workgroup PoE Switch
Providing up to 4 PoE, in-line power interface, the ISW-504PS can easily build a power centrally-controlled IP phone system, IP surveillance system, and wireless AP group for the enterprise. For instance, 4 camera / AP can be easily installed around the corner of the company for surveillance demands or building a wireless roaming environment in the office. Without the power-socket limitation, the ISW-504PS makes the installation of IP cameras or WLAN AP more easily and efficiently. |
| |
 |
| |
|
|
